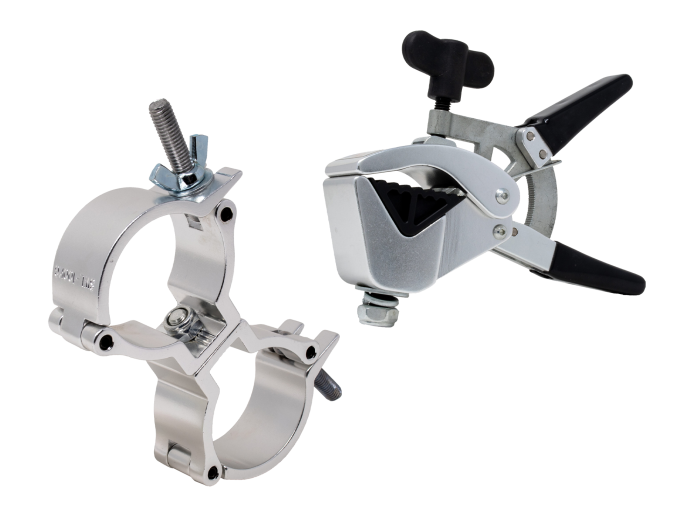

Clamps and Couplers by Cosmic Truss

Cosmic Truss offers an extensive range of clamps and couplers to meet all design requirements.

The vast majority of products and spare parts are available in black upon request.

Standard 2 in

Fit standard pipes with 48 – 51 mm / 2 in diameters.

Art. No.	Name	Description

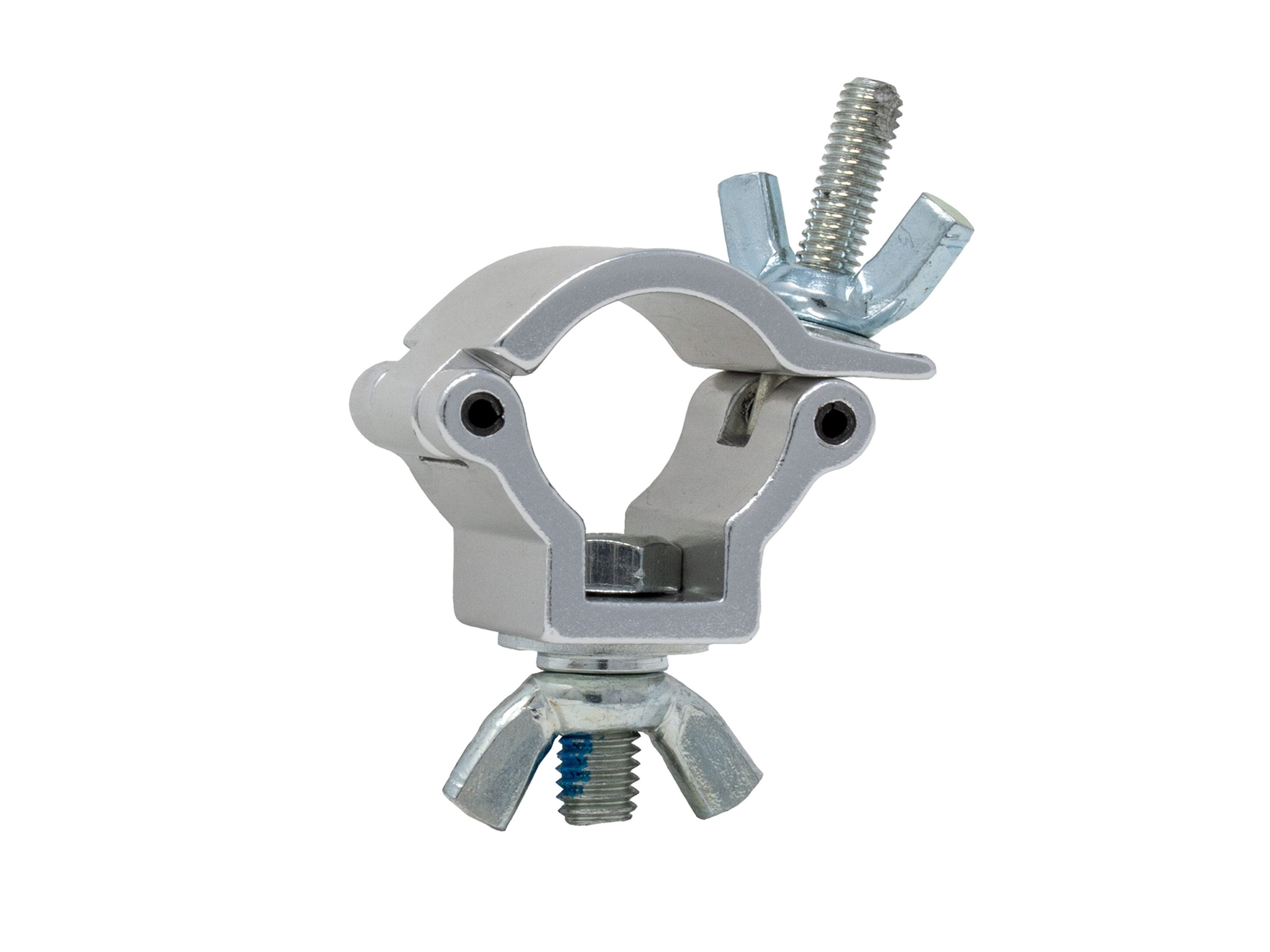

812	Low Profile Half Coupler	load capacity: 100 kg / 220 lbs; incl: M10 bolt set

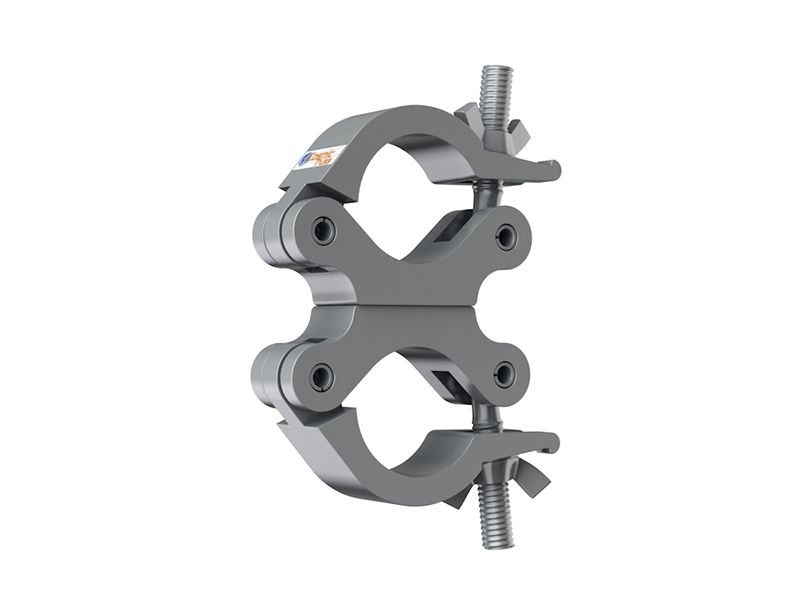

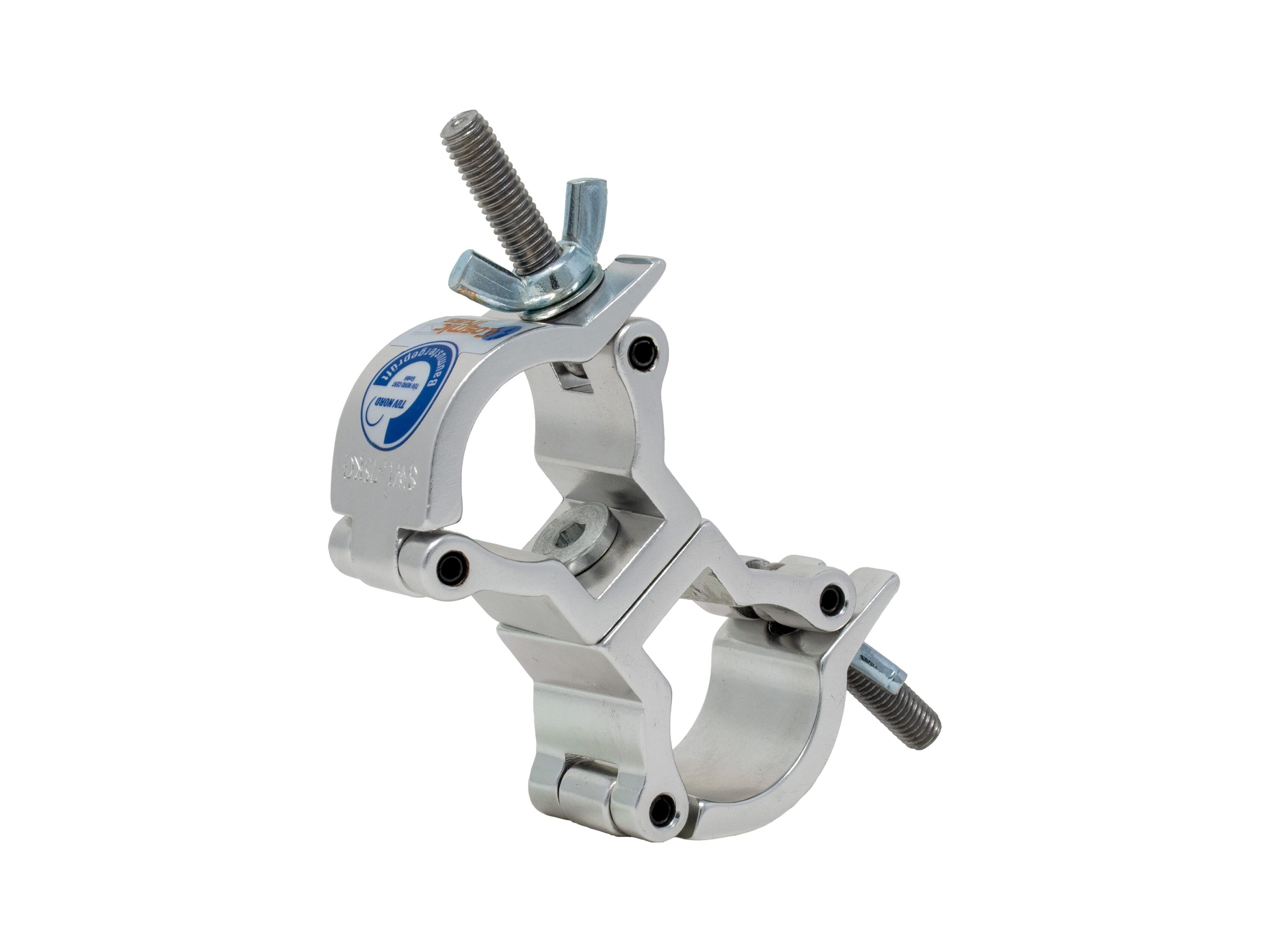

5025	Narrow Double Cheeseboro	load capacity: 200 kg / 440 lbs
5032-2	Double Low Profile Coupler	load capacity: 100 kg / 220 lbs

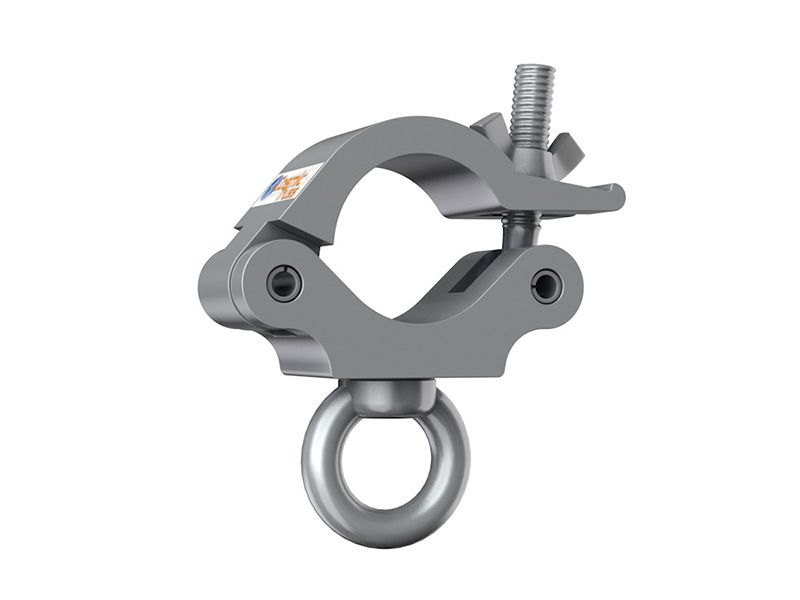

5033	Half Coupler with Eyebolt	load capacity: 200 kg / 440 lbs
5034	Half Coupler with Half Conical	load capacity: 500 kg / 1,100 lbs

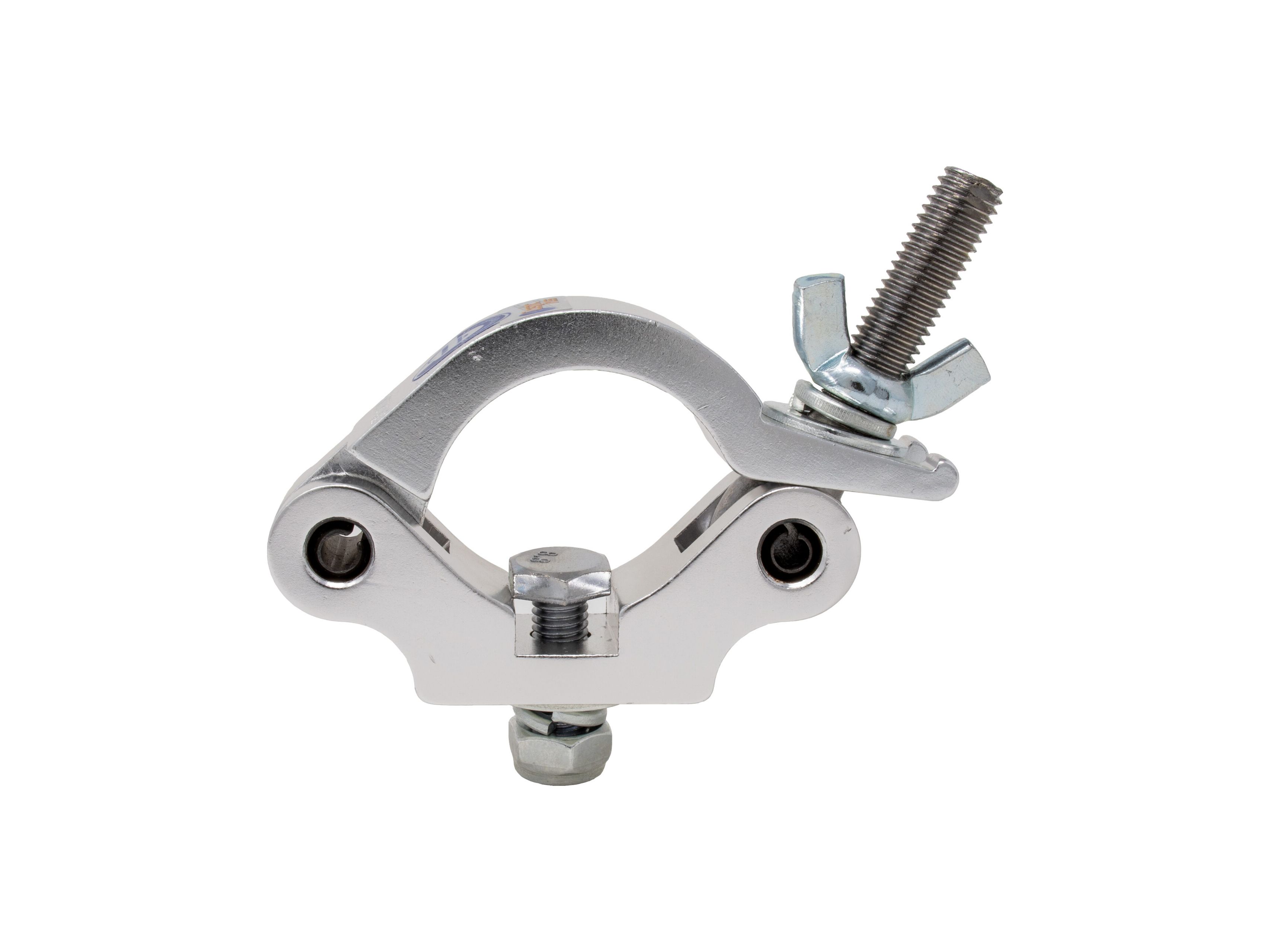

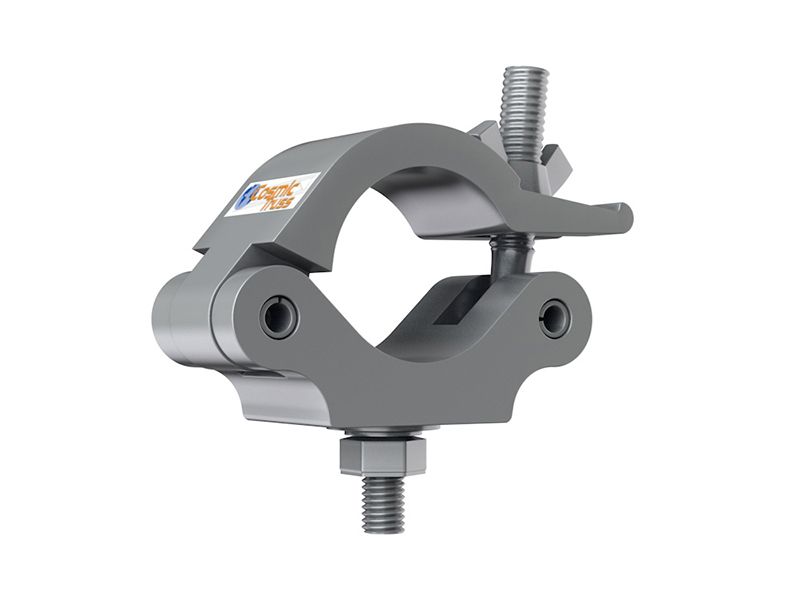

5035	Half Coupler	load capacity: 500 kg / 1,100 lbs; incl: M10 bolt set

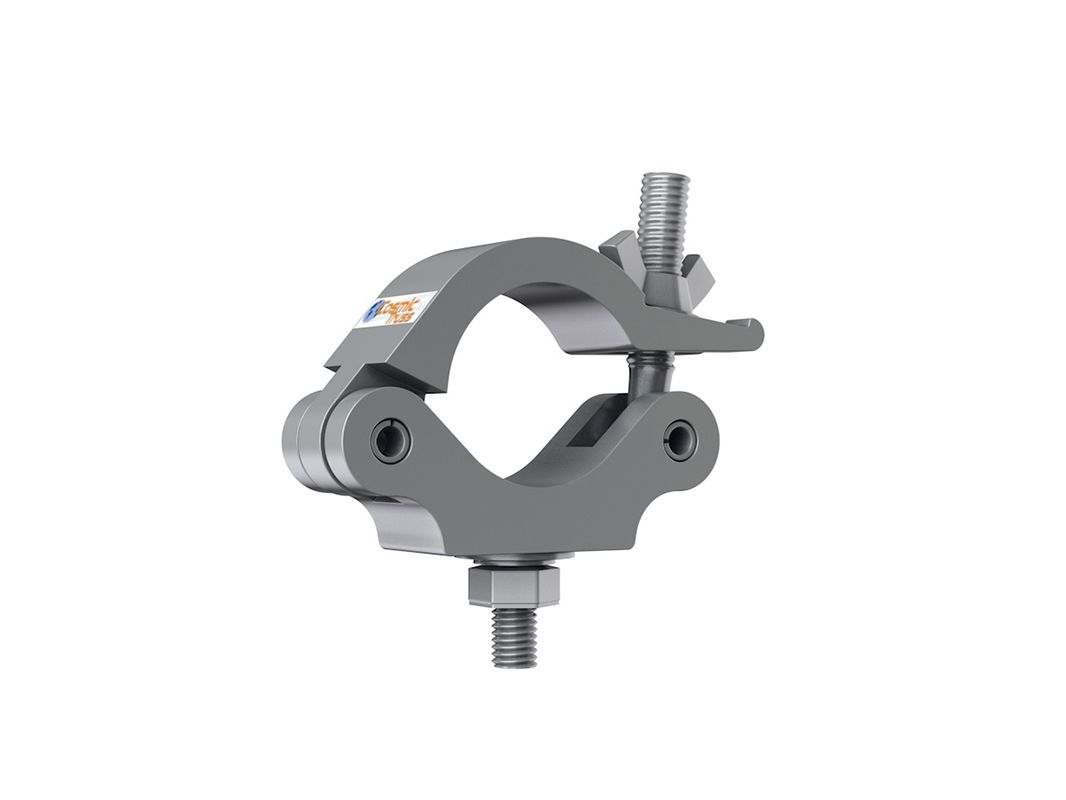

5035-2	Narrow Half Coupler	load capacity: 200 kg / 440 lbs; incl: M10 bolt set

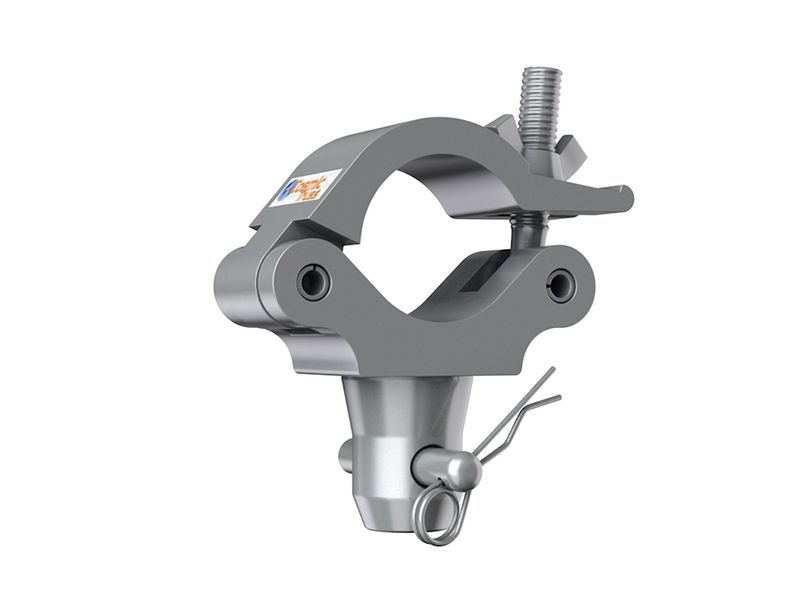

5035-2A	Narrow Half Coupler with Half Conical	load capacity: 200 kg / 440 lbs
5035-2H	Narrow Half Coupler with Hex-Bolt	load capacity: 200 kg / 440 lbs

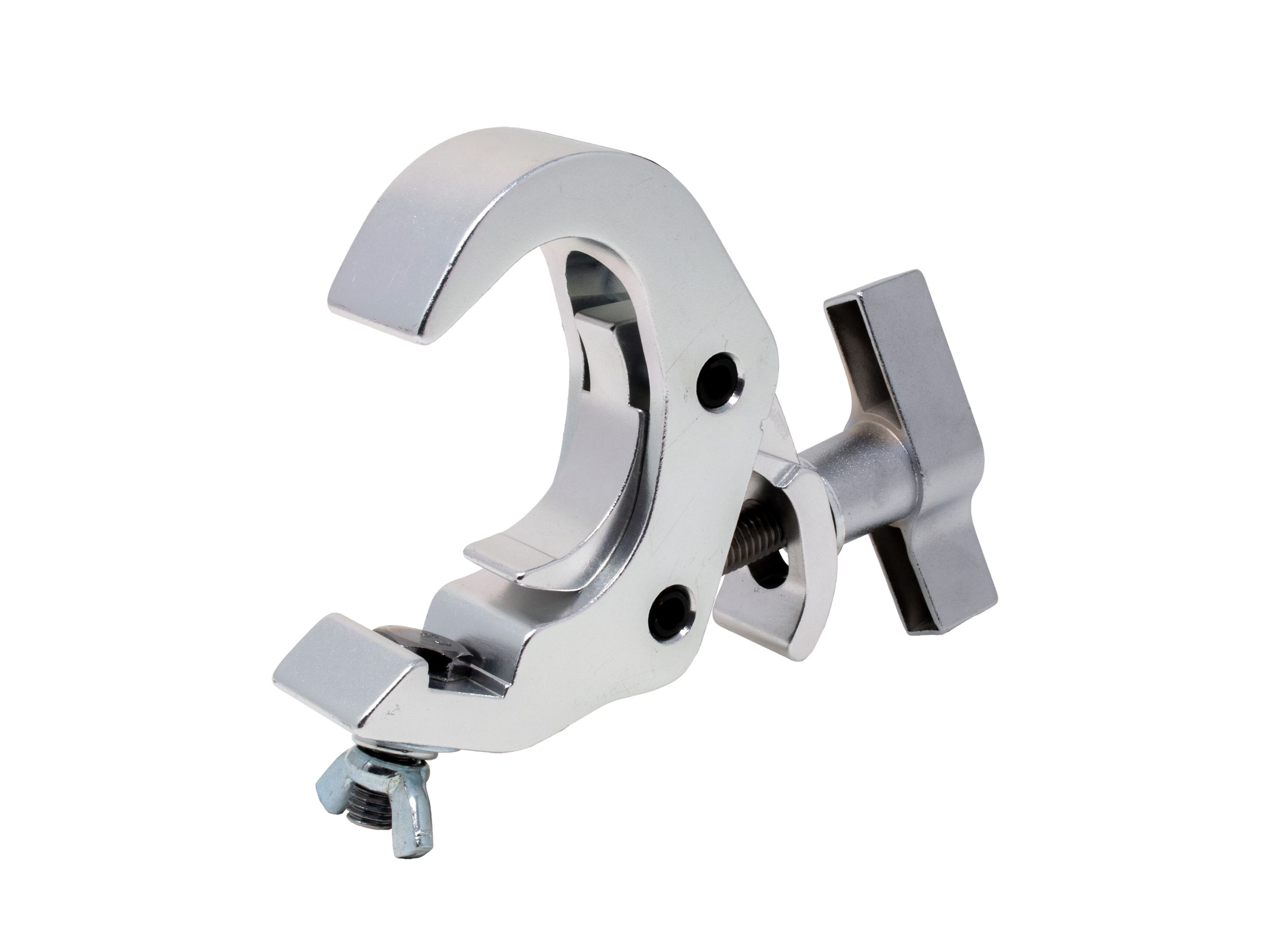

5070	Trigger Clamp	load capacity: 200 kg / 440 lbs

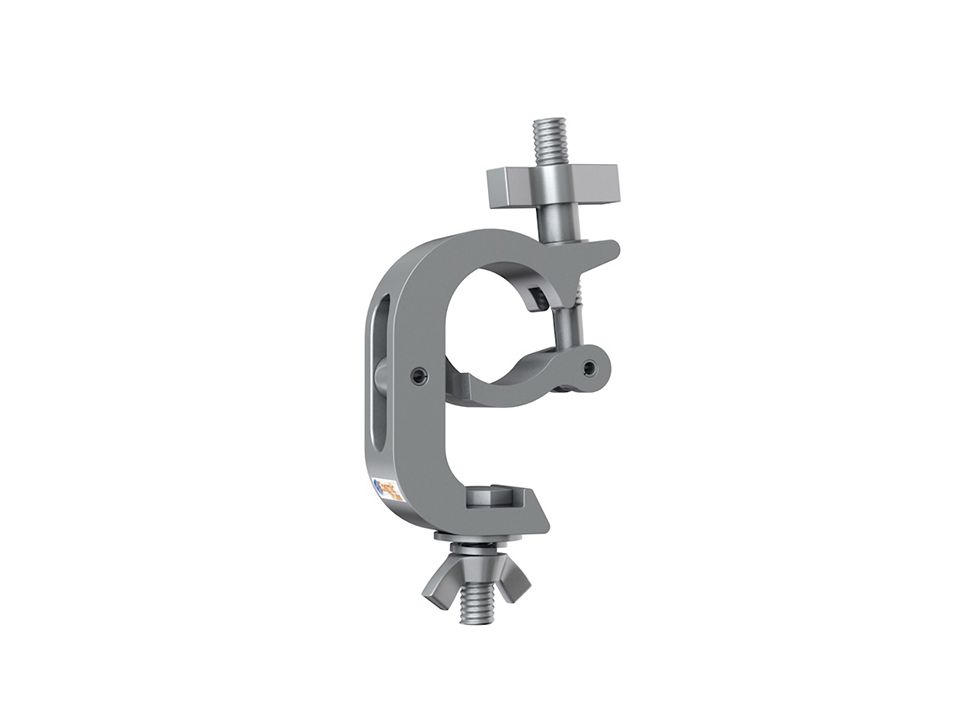

5073	Self Locking Hook Clamp	load capacity: 250 kg / 550 lbs
ST824A	Angled Narrow Half Coupler C with Half Conical	load capacity: 200 kg / 440 lbs

Other Standards

Art. No.	Name	Description

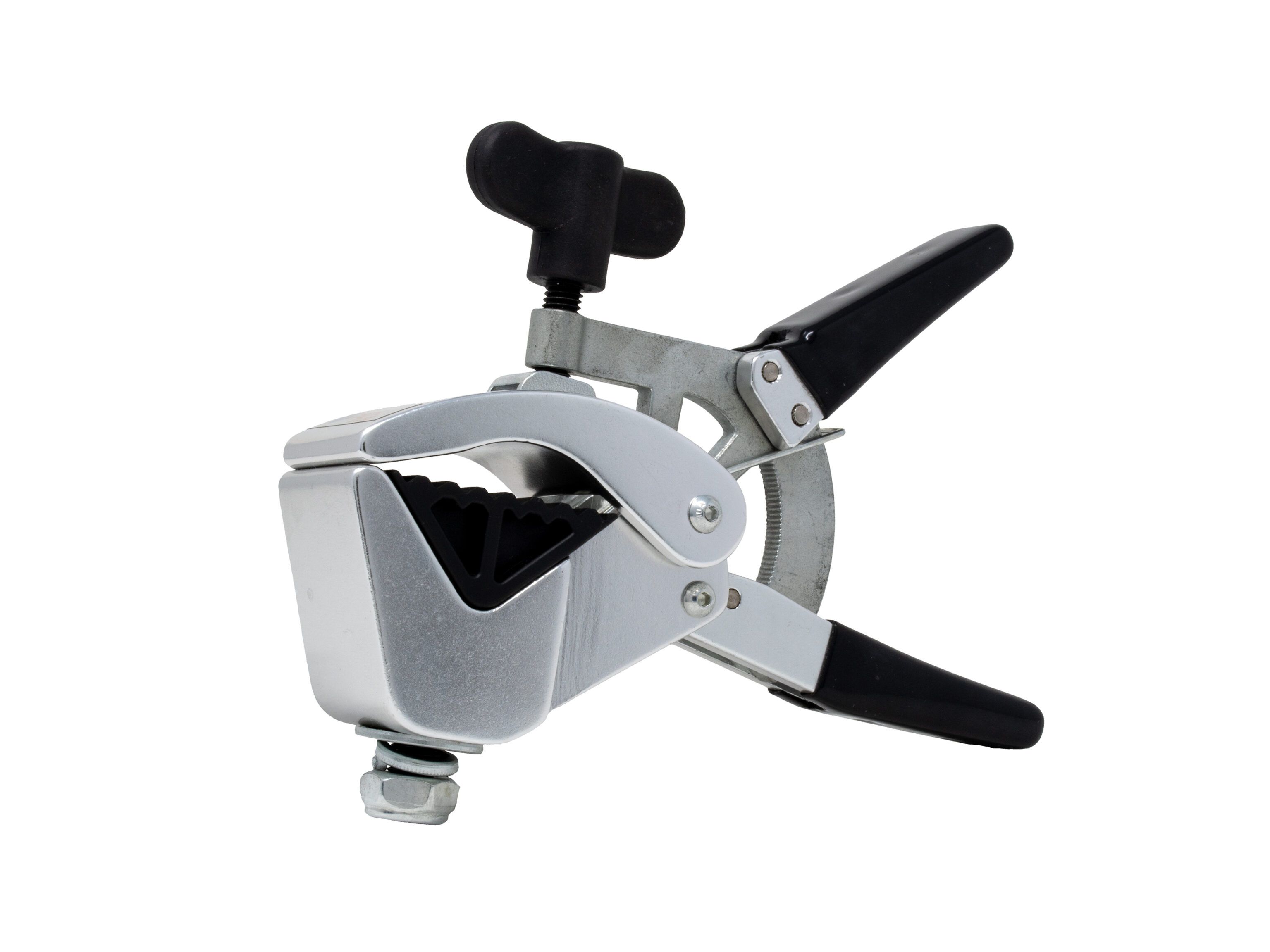

5077-1	Smart Gripper	for standard ⌀1.2 – 2 in pipes

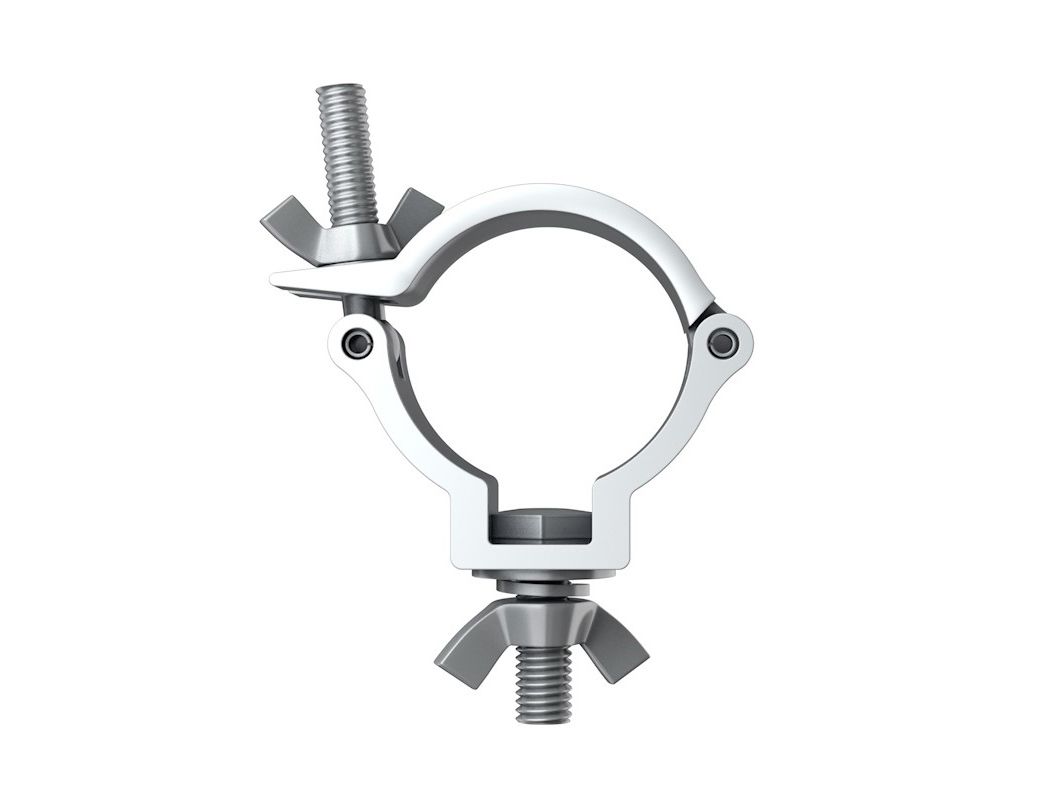

F14-5032	Mini Half Coupler	load capacity: 10 kg / 22 lbs; opening ⌀20 mm / 0.78 in; fits F14, F32, F33, F34, F35 trusses; incl: bolt set

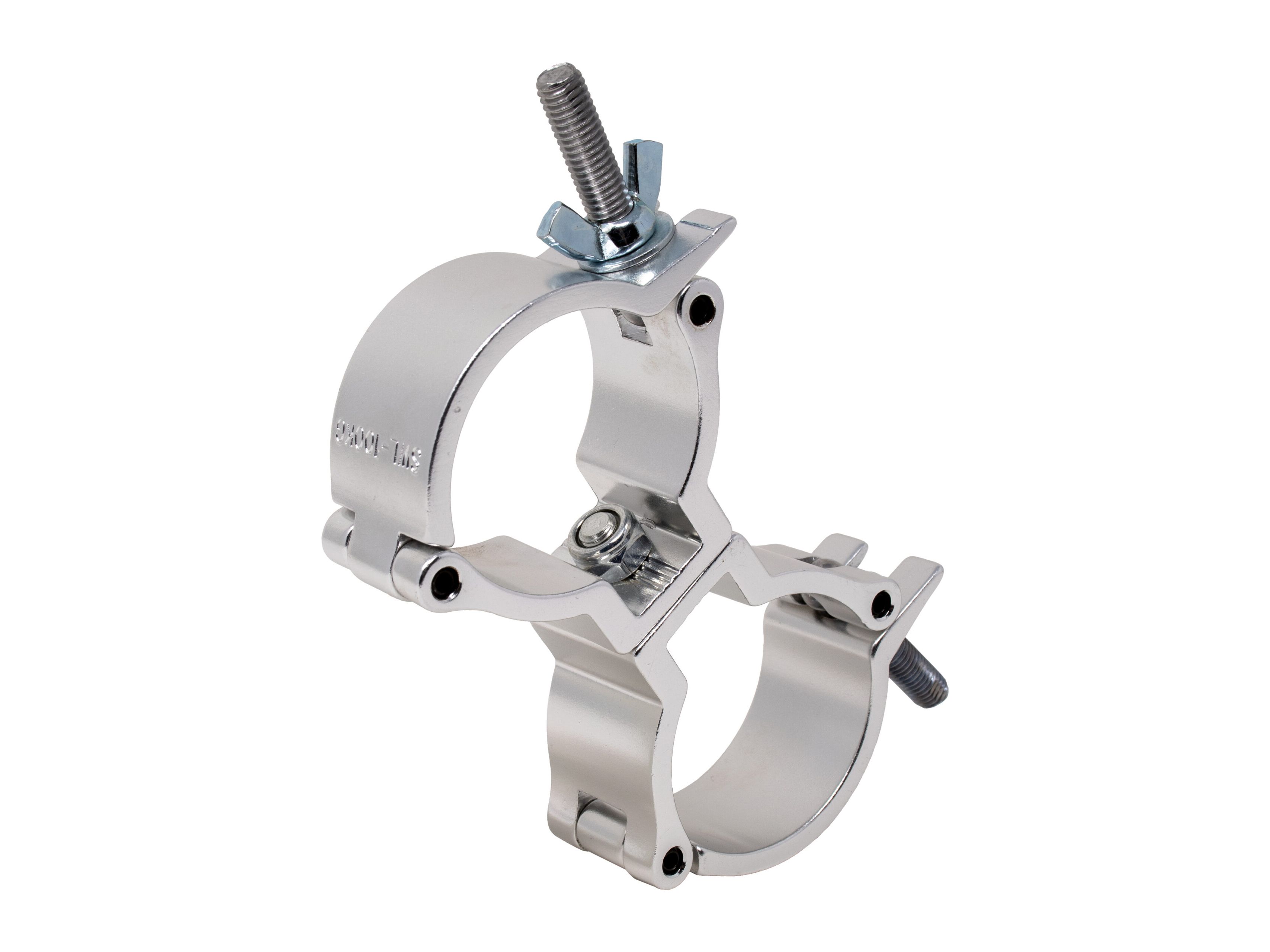

F14-5038	Mini Double Cheeseboro	load capacity: 10 kg / 22 lbs; opening ⌀20 mm / 0.78 in; fits F14, F32, F33, F34, F35 trusses

Clamps and Couplers by Cosmic Truss

#812 – Low Profile Half Coupler

#5025 – Narrow Double Cheeseboro

#5032-2 – Double Low Profile Coupler

#5033 – Half Coupler with Eyebolt

#5034 – Half Coupler with Half Conical

#5035 – Half Coupler

#5035-2 – Narrow Half Coupler

#5035-2A – Narrow Half Coupler with Half Conical

#5035-2H – Narrow Half Coupler with Hex-Bolt

#5070 – Trigger Clamp

#5073 – Self Locking Hook Clamp

#ST824A – Angled Narrow Half Coupler C with Half Conical

#5077-1 – Smart Gripper

#F14-5032 – Mini Half Coupler

#F14-5038 – Mini Double Cheeseboro

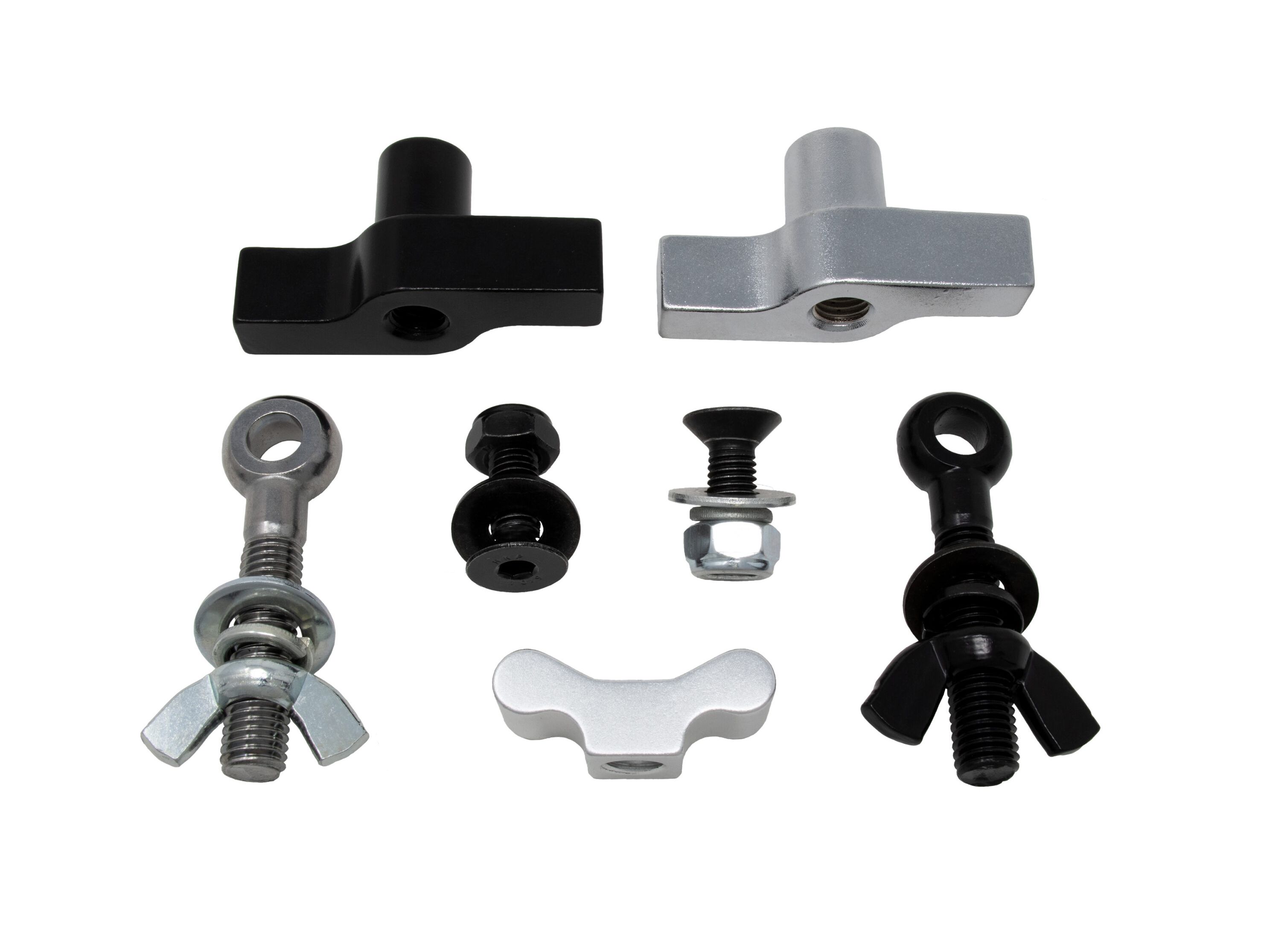

Global Truss Clamps Spare Parts
